Kábelre/áramsínre húzható áramváltó, MBS ASK41.6

Áramváltó 50 A... 1000 A AC áramok mérésére, 5 A, vagy 1 A szekunder árammal, 0.5 és 1 pontossági osztállyal

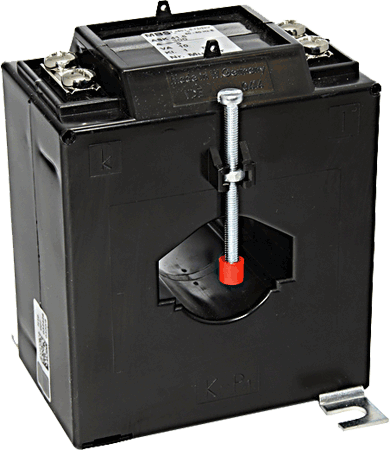

Kábelre/áramsínre húzható áramváltó, ASK41.6

AC áramváltó, MBS  ASK41.6

  • Áramsín: 1 db. 40 x 12 mm, vagy 1 db. 30 x 15 mm
  • Kábel átmérő: max. 32 mm
  • Termál névleges folyamatos áram, Icth: 1,0 x In
  • Termál névleges rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

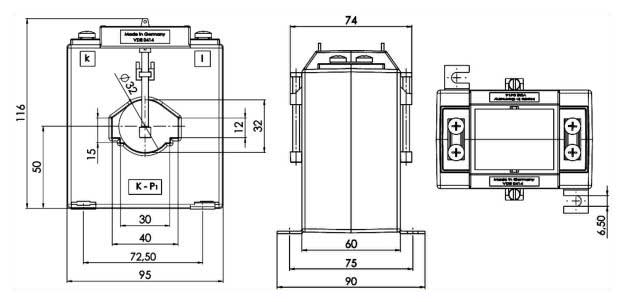

Méretek Tartozékok

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
50 5 1.5 1 ASK 41.6 50/5A 1.5VA cl.1 14060
60 5 1.5 1 ASK 41.6 60/5A 1.5VA cl.1 14062
60 5 2.5 1 ASK 41.6 60/5A 2.5VA cl.1 14063
75 5 1.5 1 ASK 41.6 75/5A 1.5VA cl.1 14064
75 5 2.5 1 ASK 41.6 75/5A 2.5VA cl.1 14065
75 5 3.75 1 ASK 41.6 75/5A 3.75VA cl.1 14134
80 5 2.5 1 ASK 41.6 80/5A 2.5VA cl.1 14067
80 5 3.75 1 ASK 41.6 80/5A 3.75VA cl.1 14135
100 5 2.5 1 ASK 41.6 100/5A 2.5VA cl.1 14069
100 5 5 1 ASK 41.6 100/5A 5VA cl.1 14070
100 5 3.75 1 ASK 41.6 100/5A 7.5VA cl.1 14136
100 5 10 1 ASK 41.6 100/5A 10VA cl.1 14071
150 5 5 1 ASK 41.6 150/5A 5VA cl.1 14072
150 5 10 1 ASK 41.6 150/5A 10VA cl.1 14073
150 5 15 1 ASK 41.6 150/5A 15VA cl.1 14074
200 5 5 1 ASK 41.6 200/5A 5VA cl.1 14075
200 5 10 1 ASK 41.6 200/5A 10VA cl.1 14076
200 5 15 1 ASK 41.6 200/5A 15VA cl.1 14077
250 5 5 1 ASK 41.6 250/5A 5VA cl.1 14078
250 5 10 1 ASK 41.6 250/5A 10VA cl.1 14079
250 5 15 1 ASK 41.6 250/5A 15VA cl.1 14080
300 5 5 1 ASK 41.6 300/5A 5VA cl.1 14081
300 5 10 1 ASK 41.6 300/5A 10VA cl.1 14082
300 5 15 1 ASK 41.6 300/5A 15VA cl.1 14083
400 5 5 1 ASK 41.6 400/5A 5VA cl.1 14084
400 5 10 1 ASK 41.6 400/5A 10VA cl.1 14085
400 5 15 1 ASK 41.6 400/5A 15VA cl.1 14086
500 5 5 1 ASK 41.6 500/5A 5VA cl.1 14087
500 5 10 1 ASK 41.6 500/5A 10VA cl.1 14088
500 5 15 1 ASK 41.6 500/5A 15VA cl.1 14089
500 5 30 1 ASK 41.6 500/5A 30VA cl.1 14137
600 5 10 1 ASK 41.6 600/5A 10VA cl.1 14090
600 5 15 1 ASK 41.6 600/5A 15VA cl.1 14091
600 5 30 1 ASK 41.6 600/5A 30VA cl.1 14092
750 5 10 1 ASK 41.6 750/5A 10VA cl.1 14094
750 5 15 1 ASK 41.6 750/5A 15VA cl.1 14095
750 5 30 1 ASK 41.6 750/5A 30VA cl.1 14096
800 5 10 1 ASK 41.6 800/5A 10VA cl.1 14098
800 5 15 1 ASK 41.6 800/5A 15VA cl.1 14099
800 5 30 1 ASK 41.6 800/5A 30VA cl.1 14100
1000 5 10 1 ASK 41.6 1000/5A 10VA cl.1 14102
1000 5 15 1 ASK 41.6 1000/5A 15VA cl.1 14103
1000 5 30 1 ASK 41.6 1000/5A 30VA cl.1 14104
1000 5 45 1 ASK 41.6 1000/5A 45VA cl.1 14105
50 5 1.5 0.5 ASK 41.6 50/5A 1.5VA cl.0.5 14011
60 5 1.5 0.5 ASK 41.6 60/5A 1.5VA cl.0.5 14012
75 5 2.5 0.5 ASK 41.6 75/5A 2.5VA cl.0.5 14013
80 5 2.5 0.5 ASK 41.6 80/5A 2.5VA cl.0.5 14015
100 5 2.5 0.5 ASK 41.6 100/5A 2.5VA cl.0.5 14017
100 5 5 0.5 ASK 41.6 100/5A 5VA cl.0.5 14018
150 5 5 0.5 ASK 41.6 150/5A 5VA cl.0.5 14021
200 5 5 0.5 ASK 41.6 200/5A 5VA cl.0.5 14025
200 5 10 0.5 ASK 41.6 200/5A 10VA cl.0.5 14026
250 5 5 0.5 ASK 41.6 250/5A 5VA cl.0.5 14029
250 5 10 0.5 ASK 41.6 250/5A 10VA cl.0.5 14030
250 5 15 0.5 ASK 41.6 250/5A 15VA cl.0.5 14031
300 5 5 0.5 ASK 41.6 300/5A 5VA cl.0.5 14033
300 5 10 0.5 ASK 41.6 300/5A 10VA cl.0.5 14034
300 5 15 0.5 ASK 41.6 300/5A 15VA cl.0.5 14035
400 5 5 0.5 ASK 41.6 400/5A 5VA cl.0.5 14037
400 5 10 0.5 ASK 41.6 400/5A 10VA cl.0.5 14038
400 5 15 0.5 ASK 41.6 400/5A 15VA cl.0.5 14039
500 5 5 0.5 ASK 41.6 500/5A 5VA cl.0.5 14041
500 5 10 0.5 ASK 41.6 500/5A 10VA cl.0.5 14042
500 5 15 0.5 ASK 41.6 500/5A 15VA cl.0.5 14043
600 5 10 0.5 ASK 41.6 600/5A 10VA cl.0.5 14045
600 5 15 0.5 ASK 41.6 600/5A 15VA cl.0.5 14046
600 5 30 0.5 ASK 41.6 600/5A 30VA cl.0.5 14047
750 5 10 0.5 ASK 41.6 750/5A 10VA cl.0.5 14049
750 5 15 0.5 ASK 41.6 750/5A 15VA cl.0.5 14050
750 5 30 0.5 ASK 41.6 750/5A 30VA cl.0.5 14051
800 5 10 0.5 ASK 41.6 800/5A 10VA cl.0.5 14053
800 5 15 0.5 ASK 41.6 800/5A 15VA cl.0.5 14054
800 5 30 0.5 ASK 41.6 800/5A 30VA cl.0.5 14055
1000 5 10 0.5 ASK 41.6 1000/5A 10VA cl.0.5 14057
1000 5 15 0.5 ASK 41.6 1000/5A 15VA cl.0.5 14058
1000 5 30 0.5 ASK 41.6 1000/5A 30VA cl.0.5 14059
50 1 1.5 1 ASK 41.6 50/1A 1.5VA cl.1 14260
60 1 1.5 1 ASK 41.6 60/1A 1.5VA cl.1 14262
60 1 2.5 1 ASK 41.6 60/1A 2.5VA cl.1 14263
75 1 1.5 1 ASK 41.6 75/1A 1.5VA cl.1 14264
75 1 2.5 1 ASK 41.6 75/1A 2.5VA cl.1 14265
75 1 3.75 1 ASK 41.6 75/1A 3.75VA cl.1 14334
80 1 2.5 1 ASK 41.6 80/1A 2.5VA cl.1 14267
80 1 3.75 1 ASK 41.6 80/1A 3.75VA cl.1 14335
100 1 2.5 1 ASK 41.6 100/1A 2.5VA cl.1 14269
100 1 5 1 ASK 41.6 100/1A 5VA cl.1 14270
100 1 10 1 ASK 41.6 100/1A 10VA cl.1 14336
150 1 5 1 ASK 41.6 150/1A 5VA cl.1 14272
150 1 10 1 ASK 41.6 150/1A 10VA cl.1 14273
150 1 15 1 ASK 41.6 150/1A 15VA cl.1 14274
200 1 5 1 ASK 41.6 200/1A 5VA cl.1 14275
200 1 10 1 ASK 41.6 200/1A 10VA cl.1 14276
200 1 15 1 ASK 41.6 200/1A 15VA cl.1 14277
250 1 5 1 ASK 41.6 250/1A 5VA cl.1 14278
250 1 10 1 ASK 41.6 250/1A 10VA cl.1 14279
250 1 15 1 ASK 41.6 250/1A 15VA cl.1 14280
300 1 5 1 ASK 41.6 300/1A 5VA cl.1 14281
300 1 10 1 ASK 41.6 300/1A 10VA cl.1 14282
300 1 15 1 ASK 41.6 300/1A 15VA cl.1 14283
400 1 5 1 ASK 41.6 400/1A 5VA cl.1 14284
400 1 10 1 ASK 41.6 400/1A 10VA cl.1 14285
400 1 15 1 ASK 41.6 400/1A 15VA cl.1 14286
500 1 5 1 ASK 41.6 500/1A 5VA cl.1 14287
500 1 10 1 ASK 41.6 500/1A 10VA cl.1 14288
500 1 15 1 ASK 41.6 500/1A 15VA cl.1 14289
500 1 30 1 ASK 41.6 500/1A 30VA cl.1 14337
600 1 10 1 ASK 41.6 600/1A 10VA cl.1 14290
600 1 15 1 ASK 41.6 600/1A 15VA cl.1 14291
600 1 30 1 ASK 41.6 600/1A 30VA cl.1 14292
750 1 10 1 ASK 41.6 750/1A 10VA cl.1 14294
750 1 15 1 ASK 41.6 750/1A 15VA cl.1 14295
750 1 30 1 ASK 41.6 750/1A 30VA cl.1 14296
800 1 10 1 ASK 41.6 800/1A 10VA cl.1 14298
800 1 15 1 ASK 41.6 800/1A 15VA cl.1 14299
800 1 30 1 ASK 41.6 800/1A 30VA cl.1 14300
1000 1 10 1 ASK 41.6 1000/1A 10VA cl.1 14302
1000 1 15 1 ASK 41.6 1000/1A 15VA cl.1 14303
1000 1 30 1 ASK 41.6 1000/1A 30VA cl.1 14304
1000 1 45 1 ASK 41.6 1000/1A 45VA cl.1 14305
50 1 1.5 0.5 ASK 41.6 50/1A 1.5VA cl.0.5 14211
60 1 1.5 0.5 ASK 41.6 60/1A 1.5VA cl.0.5 14212
75 1 2.5 0.5 ASK 41.6 75/1A 2.5VA cl.0.5 14213
80 1 2.5 0.5 ASK 41.6 80/1A 2.5VA cl.0.5 14215
100 1 2.5 0.5 ASK 41.6 100/1A 2.5VA cl.0.5 14217
100 1 5 0.5 ASK 41.6 100/1A 5VA cl.0.5 14218
150 1 5 0.5 ASK 41.6 150/1A 5VA cl.0.5 14221
200 1 5 0.5 ASK 41.6 200/1A 5VA cl.0.5 14225
200 1 10 0.5 ASK 41.6 200/1A 10VA cl.0.5 14226
250 1 5 0.5 ASK 41.6 250/1A 5VA cl.0.5 14229
250 1 10 0.5 ASK 41.6 250/1A 10VA cl.0.5 14230
250 1 15 0.5 ASK 41.6 250/1A 15VA cl.0.5 14231
300 1 5 0.5 ASK 41.6 300/1A 5VA cl.0.5 14233
300 1 10 0.5 ASK 41.6 300/1A 10VA cl.0.5 14234
300 1 15 0.5 ASK 41.6 300/1A 15VA cl.0.5 14235
400 1 5 0.5 ASK 41.6 400/1A 5VA cl.0.5 14237
400 1 10 0.5 ASK 41.6 400/1A 10VA cl.0.5 14238
400 1 15 0.5 ASK 41.6 400/1A 15VA cl.0.5 14239
500 1 5 0.5 ASK 41.6 500/1A 5VA cl.0.5 14241
500 1 10 0.5 ASK 41.6 500/1A 10VA cl.0.5 14242
500 1 15 0.5 ASK 41.6 500/1A 15VA cl.0.5 14243
600 1 10 0.5 ASK 41.6 600/1A 10VA cl.0.5 14245
600 1 15 0.5 ASK 41.6 600/1A 15VA cl.0.5 14246
600 1 30 0.5 ASK 41.6 600/1A 30VA cl.0.5 14247
750 1 10 0.5 ASK 41.6 750/1A 10VA cl.0.5 14249
750 1 15 0.5 ASK 41.6 750/1A 15VA cl.0.5 14250
750 1 30 0.5 ASK 41.6 750/1A 30VA cl.0.5 14251
800 1 10 0.5 ASK 41.6 800/1A 10VA cl.0.5 14253
800 1 15 0.5 ASK 41.6 800/1A 15VA cl.0.5 14254
800 1 30 0.5 ASK 41.6 800/1A 30VA cl.0.5 14255
1000 1 10 0.5 ASK 41.6 1000/1A 10VA cl.0.5 14257
1000 1 15 0.5 ASK 41.6 1000/1A 15VA cl.0.5 14258
1000 1 30 0.5 ASK 41.6 1000/1A 30VA cl.0.5 14259
