Áramváltó kábelre és áramsínre, MBS ASK127.4

Áramváltó 1000... 2500 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.5 és 1

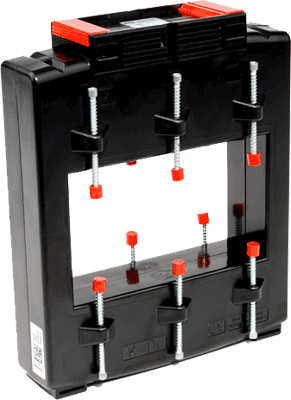

Kábelre/áramsínre húzható áramváltó, ASK127.4

AC áramváltó, MBS ASK127.4

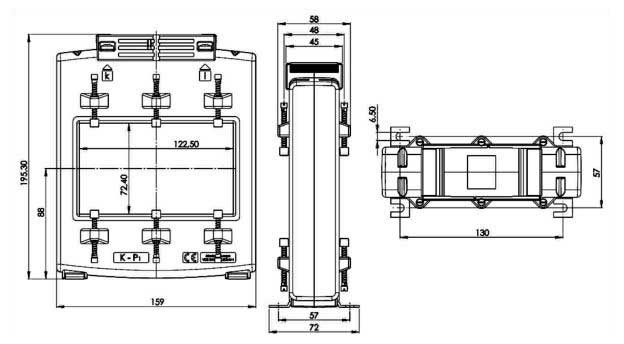

  • Áramsín: 1 db.  120 x 70 mm
  • Kábel átmérő: max.70 mm
  • Termikus folyamatos áram, Icth: 1,0 x In
  • Termikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
1000 5 5 1 ASK 127.4 1000/5A 5VA cl.1 87540
1000 5 10 1 ASK 127.4 1000/5A 10VA cl.1 87541
1200 5 5 1 ASK 127.4 1200/5A 5VA cl.1 87542
1200 5 10 1 ASK 127.4 1200/5A 10VA cl.1 87543
1200 5 15 1 ASK 127.4 1200/5A 15VA cl.1 87544
1250 5 10 1 ASK 127.4 1250/5A 10VA cl.1 87545
1250 5 15 1 ASK 127.4 1250/5A 15VA cl.1 87546
1250 5 30 1 ASK 127.4 1250/5A 30VA cl.1 87547
1500 5 10 1 ASK 127.4 1500/5A 10VA cl.1 87548
1500 5 15 1 ASK 127.4 1500/5A 15VA cl.1 87549
1500 5 30 1 ASK 127.4 1500/5A 30VA cl.1 87550
1600 5 10 1 ASK 127.4 1600/5A 10VA cl.1 87551
1600 5 15 1 ASK 127.4 1600/5A 15VA cl.1 87552
1600 5 30 1 ASK 127.4 1600/5A 30VA cl.1 87553
1800 5 10 1 ASK 127.4 1800/5A 10VA cl.1 87554
1800 5 15 1 ASK 127.4 1800/5A 15VA cl.1 87555
1800 5 30 1 ASK 127.4 1800/5A 30VA cl.1 87556
2000 5 10 1 ASK 127.4 2000/5A 10VA cl.1 87557
2000 5 15 1 ASK 127.4 2000/5A 15VA cl.1 87558
2000 5 30 1 ASK 127.4 2000/5A 30VA cl.1 87559
2500 5 10 1 ASK 127.4 2500/5A 10VA cl.1 87561
2500 5 15 1 ASK 127.4 2500/5A 15VA cl.1 87562
2500 5 30 1 ASK 127.4 2500/5A 30VA cl.1 87563
1000 5 5 0.5 ASK 127.4 1000/5A 5VA cl.0.5 87510
1000 5 10 0.5 ASK 127.4 1000/5A 10VA cl.0.5 87511
1200 5 5 0.5 ASK 127.4 1200/5A 5VA cl.0.5 87512
1200 5 10 0.5 ASK 127.4 1200/5A 10VA cl.0.5 87513
1200 5 15 0.5 ASK 127.4 1200/5A 15VA cl.0.5 87514
1250 5 10 0.5 ASK 127.4 1250/5A 10VA cl.0.5 87515
1250 5 15 0.5 ASK 127.4 1250/5A 15VA cl.0.5 87516
1250 5 30 0.5 ASK 127.4 1250/5A 30VA cl.0.5 87517
1500 5 10 0.5 ASK 127.4 1500/5A 10VA cl.0.5 87518
1500 5 15 0.5 ASK 127.4 1500/5A 15VA cl.0.5 87519
1500 5 30 0.5 ASK 127.4 1500/5A 30VA cl.0.5 87520
1600 5 10 0.5 ASK 127.4 1600/5A 10VA cl.0.5 87521
1600 5 15 0.5 ASK 127.4 1600/5A 15VA cl.0.5 87522
1600 5 30 0.5 ASK 127.4 1600/5A 30VA cl.0.5 87523
1800 5 10 0.5 ASK 127.4 1800/5A 10VA cl.0.5 87524
1800 5 15 0.5 ASK 127.4 1800/5A 15VA cl.0.5 87525
1800 5 30 0.5 ASK 127.4 1800/5A 30VA cl.0.5 87526
2000 5 10 0.5 ASK 127.4 2000/5A 10VA cl.0.5 87527
2000 5 15 0.5 ASK 127.4 2000/5A 15VA cl.0.5 87528
2000 5 30 0.5 ASK 127.4 2000/5A 30VA cl.0.5 87529
2500 5 10 0.5 ASK 127.4 2500/5A 10VA cl.0.5 87531
2500 5 15 0.5 ASK 127.4 2500/5A 15VA cl.0.5 87532
2500 5 30 0.5 ASK 127.4 2500/5A 30VA cl.0.5 87533
1000 1 5 1 ASK 127.4 1000/1A 5VA cl.1 87640
1000 1 10 1 ASK 127.4 1000/1A 10VA cl.1 87641
1200 1 5 1 ASK 127.4 1200/1A 5VA cl.1 87642
1200 1 10 1 ASK 127.4 1200/1A 10VA cl.1 87643
1200 1 15 1 ASK 127.4 1200/1A 15VA cl.1 87644
1250 1 10 1 ASK 127.4 1250/1A 10VA cl.1 87645
1250 1 15 1 ASK 127.4 1250/1A 15VA cl.1 87646
1250 1 30 1 ASK 127.4 1250/1A 30VA cl.1 87647
1500 1 10 1 ASK 127.4 1500/1A 10VA cl.1 87648
1500 1 15 1 ASK 127.4 1500/1A 15VA cl.1 87649
1500 1 30 1 ASK 127.4 1500/1A 30VA cl.1 87650
1600 1 10 1 ASK 127.4 1600/1A 10VA cl.1 87651
1600 1 15 1 ASK 127.4 1600/1A 15VA cl.1 87652
1600 1 30 1 ASK 127.4 1600/1A 30VA cl.1 87653
1800 1 10 1 ASK 127.4 1800/1A 10VA cl.1 87654
1800 1 15 1 ASK 127.4 1800/1A 15VA cl.1 87655
1800 1 30 1 ASK 127.4 1800/1A 30VA cl.1 87656
2000 1 10 1 ASK 127.4 2000/1A 10VA cl.1 87657
2000 1 15 1 ASK 127.4 2000/1A 15VA cl.1 87658
2000 1 30 1 ASK 127.4 2000/1A 30VA cl.1 87659
2500 1 10 1 ASK 127.4 2500/1A 10VA cl.1 87661
2500 1 15 1 ASK 127.4 2500/1A 15VA cl.1 87662
2500 1 30 1 ASK 127.4 2500/1A 30VA cl.1 87663
1000 1 5 0.5 ASK 127.4 1000/1A 5VA cl.0.5 87610
1000 1 10 0.5 ASK 127.4 1000/1A 10VA cl.0.5 87611
1200 1 5 0.5 ASK 127.4 1200/1A 5VA cl.0.5 87612
1200 1 10 0.5 ASK 127.4 1200/1A 10VA cl.0.5 87613
1200 1 15 0.5 ASK 127.4 1200/1A 15VA cl.0.5 87614
1250 1 10 0.5 ASK 127.4 1250/1A 10VA cl.0.5 87615
1250 1 15 0.5 ASK 127.4 1250/1A 15VA cl.0.5 87616
1250 1 30 0.5 ASK 127.4 1250/1A 30VA cl.0.5 87617
1500 1 10 0.5 ASK 127.4 1500/1A 10VA cl.0.5 87618
1500 1 15 0.5 ASK 127.4 1500/1A 15VA cl.0.5 87619
1500 1 30 0.5 ASK 127.4 1500/1A 30VA cl.0.5 87620
1600 1 10 0.5 ASK 127.4 1600/1A 10VA cl.0.5 87621
1600 1 15 0.5 ASK 127.4 1600/1A 15VA cl.0.5 87622
1600 1 30 0.5 ASK 127.4 1600/1A 30VA cl.0.5 87623
1800 1 10 0.5 ASK 127.4 1800/1A 10VA cl.0.5 87624
1800 1 15 0.5 ASK 127.4 1800/1A 15VA cl.0.5 87625
1800 1 30 0.5 ASK 127.4 1800/1A 30VA cl.0.5 87626
2000 1 10 0.5 ASK 127.4 2000/1A 10VA cl.0.5 87627
2000 1 15 0.5 ASK 127.4 2000/1A 15VA cl.0.5 87628
2000 1 30 0.5 ASK 127.4 2000/1A 30VA cl.0.5 87629
2500 1 10 0.5 ASK 127.4 2500/1A 10VA cl.0.5 87631
2500 1 15 0.5 ASK 127.4 2500/1A 15VA cl.0.5 87632
2500 1 30 0.5 ASK 127.4 2500/1A 30VA cl.0.5 87633
